Structured cabling is the foundation of any data center with mission-critical applications. Technology and equipment are upgrading frequently for performance, energy efficiency, and cost savings. The structured cabling must support reliability, scalability, and cost efficiency.
Cabling123 specializes in structured cabling and connectivity with a proven 15-year track record.
Our SDN and ROME® robotic fiber switching simplify the cabling process.
We offer custom-manufactured cables with complete kits, ensuring quality and cost efficiency.
Understanding customer requirements is key to success. Often, customers lack complete information about site plans, rack layouts, capacity, and obstacles. Our turn-key solution simplifies this process with a single part number for full project pricing, allowing flexibility for detailed work.

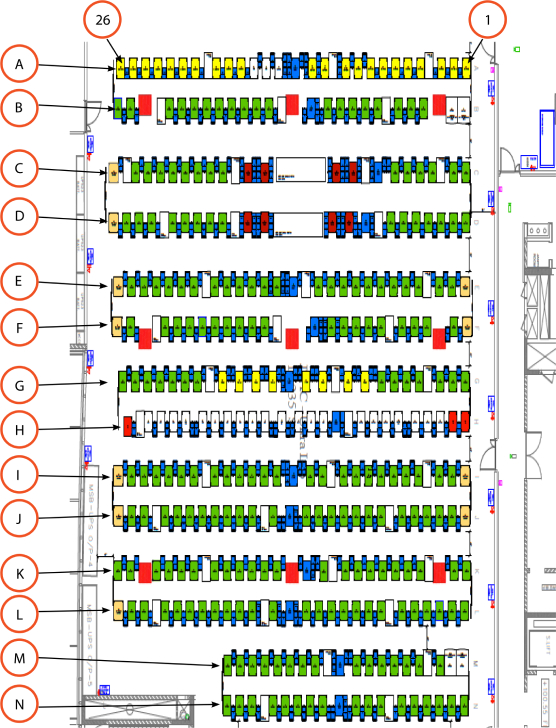

It’s important to have a big picture view and set up nomenclature and numbering conventions. Below is an example of a full data center build-out with about 350 racks.

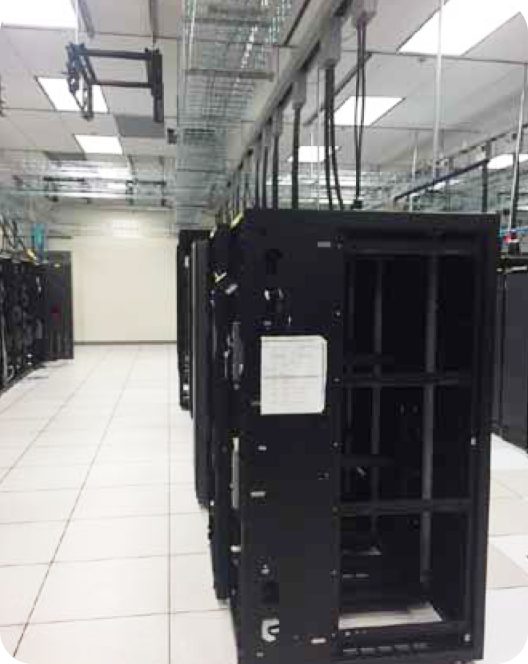

Details of rack setup, including size, cable management structure, orientations, and detailed level numbering and naming to avoid communication errors.

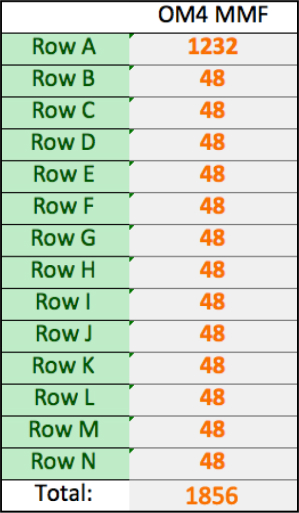

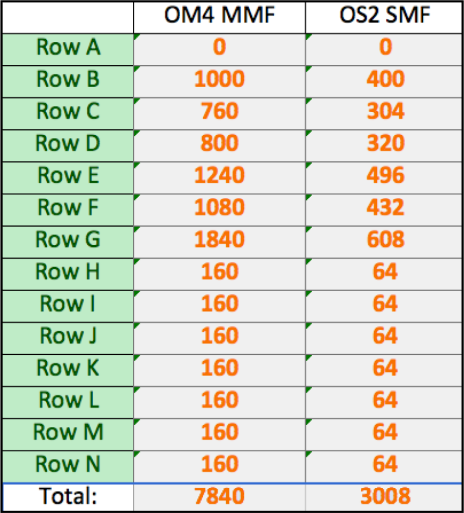

Detailed level breakdown of the number of fibers, media types, source to destination locations, quantities, etc. This helps in calculating patch panel ports, optimizing space, and enhancing standardization.
Our Turn-Key Infrastructure Cabling Solution offers a custom configured kit with pre-terminated fiber trunks and patch panels required to build the data center infrastructure.

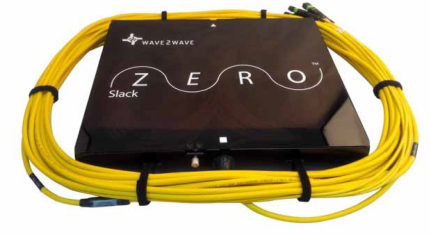

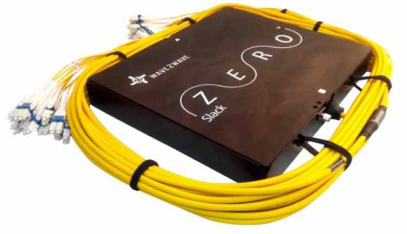

Each trunk cable is manufactured based on specific connections with horizontal and vertical reach end-to-end, ensuring sufficient length with minimum slack using our patented Slack ZERO™ solution.

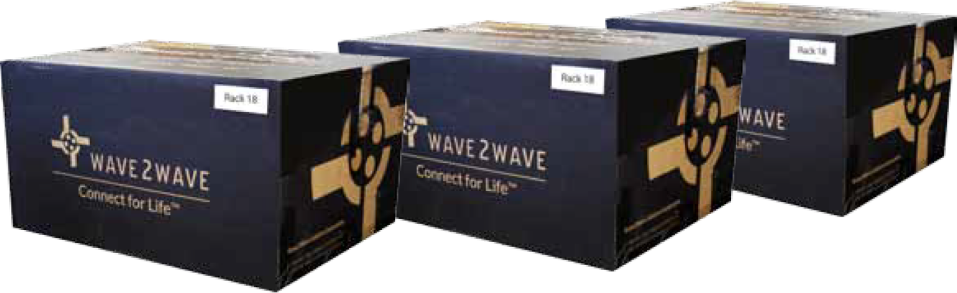

Detailed bill of materials and packaging, with examples of kitted packaging for specific rows of racks.
Step-by-step installation procedures including dispatching materials, distributing materials by rack, installing panels, distributing trunk cables, installing trunk cables, and connecting to panels.
Step-by-step installation procedures including dispatching materials, distributing materials by rack, installing panels, distributing trunk cables, installing trunk cables, and connecting to panels.
Wave2Wave’s solution meets the critical demands of modern data centers with fast, scalable infrastructure deployment.
Our robust backbone infrastructure simplifies network topology management, minimizing downtime and enhancing efficiency.
Designed for DELL EMC IPS, OS, and OEM Labs, our solution reduces costs while supporting future technology needs.
Adaptable to changing needs, ensuring long-term usability.
Minimized implementation time and effort, with a full-service solution from design to deployment.
Supports 40G, 100G, and QFSP DD, while addressing current 10G needs.
Complimentary design services, factory-direct pricing, and ongoing local support.
Our design is built on quality, simplicity, and cost-effectiveness
Deployed worldwide in mission-critical environments.
From engineering and design to installation, we handle everything, reducing on-site work and complexity.
Factory-direct pricing with no compromise on quality, backed by complimentary design services.
We ensure a smooth implementation process
Review and organize materials based on the Bill of Materials (BOM).
Mount EVO 2U Panels according to the elevation plan.
Connect cables to their respective ports, align bundles, and install cassettes.
Place materials in their designated locations, ensuring everything is within reach.
Distribute trunk cables along the wire tray, ensuring they are properly organized.

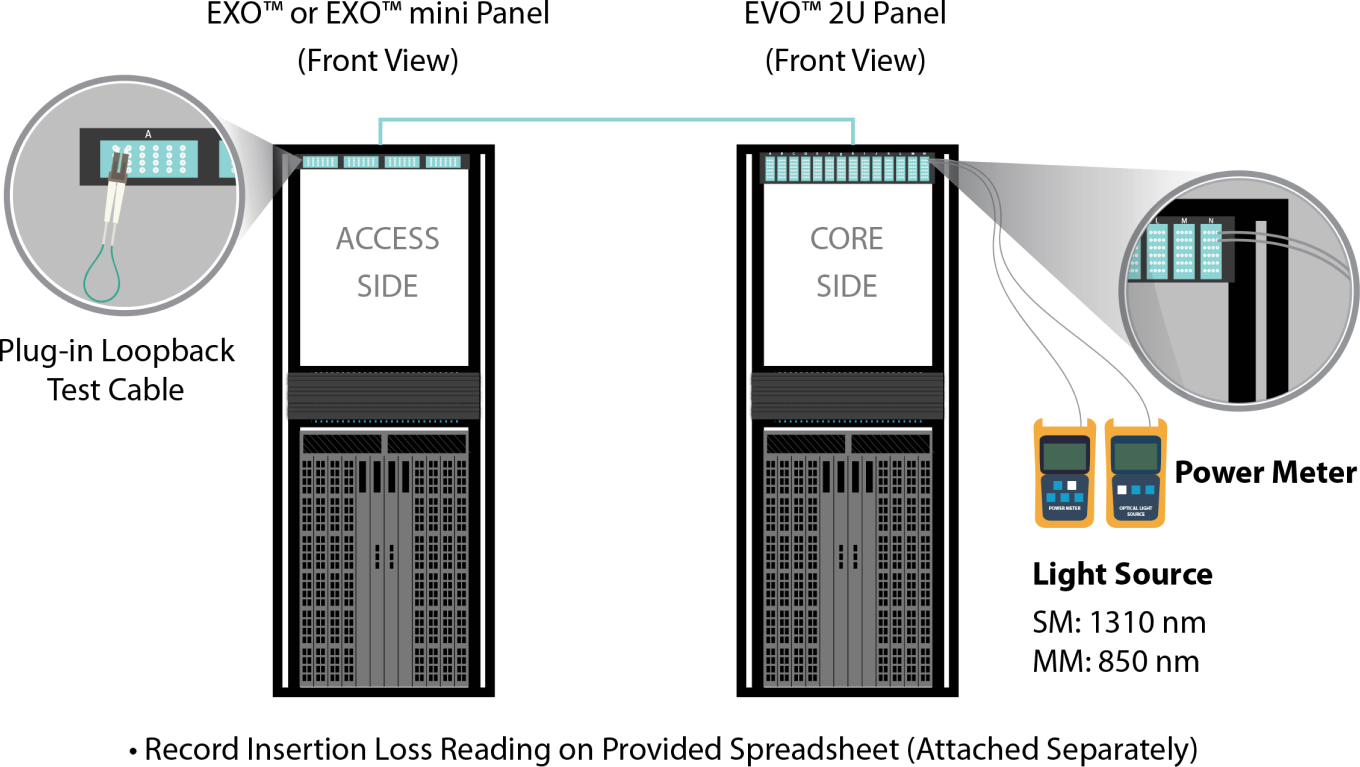

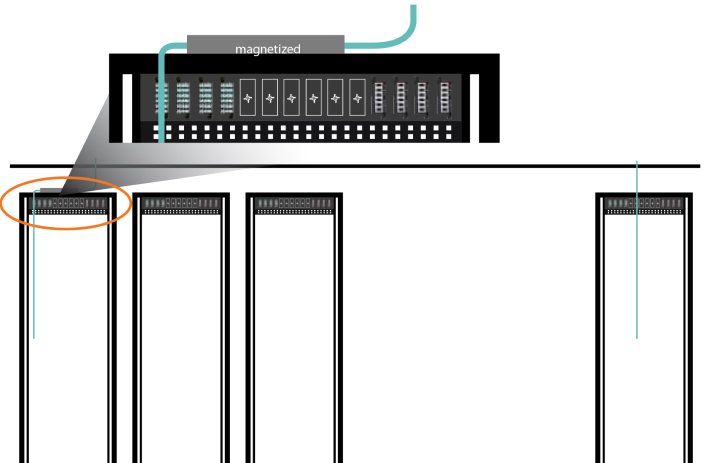

Wave2Wave provides a complete testing kit and conducts rigorous testing to verify the integrity and perform ance of the cabling system. A final walkthrough ensures that all aspects of the installation meet the highest standards.
Contact Cabling123 today to discover how our turn-key structured cabling
solutions can enhance your infrastructure, reduce costs, and simplify management.
